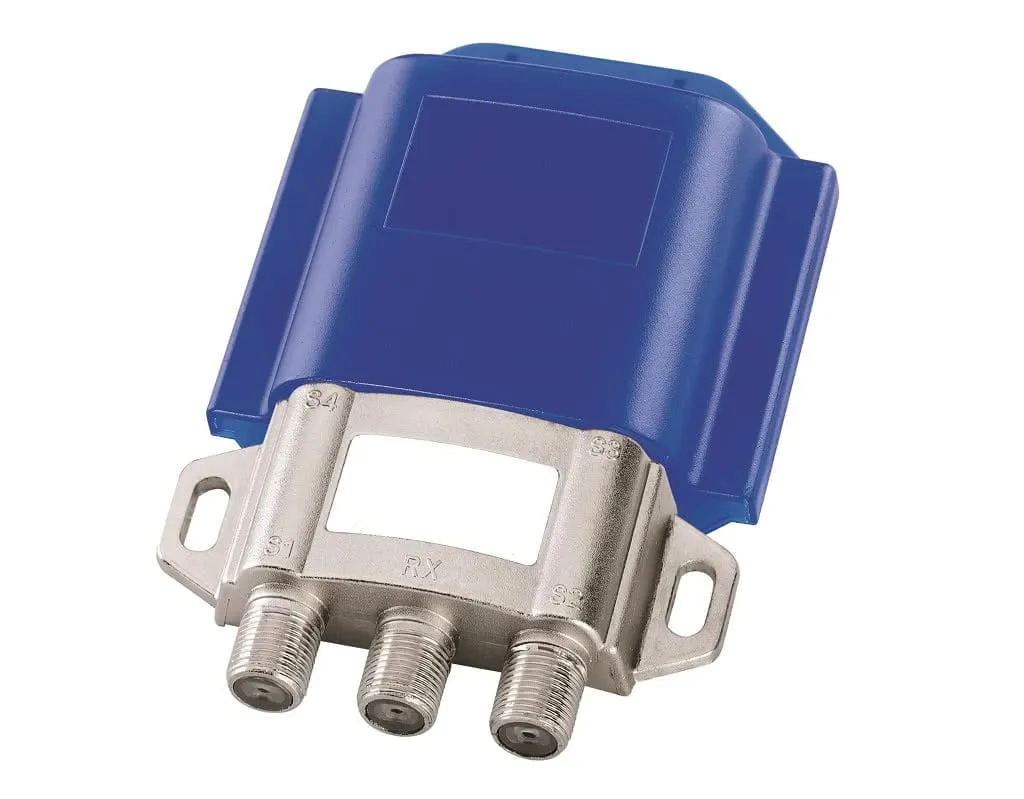

2-Way Satellite/TV Diplexer RF and LNB Signal Combiner / LNB Splitter for

DSTV Decoder Model 5s / Explora 3A and newer models without RF Ports

The diplexer is used on newer decoders with no RF output ports to run the DSTV / Multichoice Decoder heartbeat via the SmartLNB using a single cable. Actual product design may be different than website picture but product will provide the same functions VHF/UHF and Sattellite input and one combined output.

Please see the DSTV Installation Diagrams & User Bands page for more information on installation.

The satellite/TV antenna diplexer combines signals from your satellite dish and VHF/UHF TV antenna into one coaxial cable output. Use a second diplexer to split the signals for connection to satellite or TV antenna jacks on your receiver.

Functions

• Also used for Multichoice Explora / PVR installations, when connecting two decoders in  dual view.
• Eliminates the need to run a separate heartbeat cable between the two decoders.
