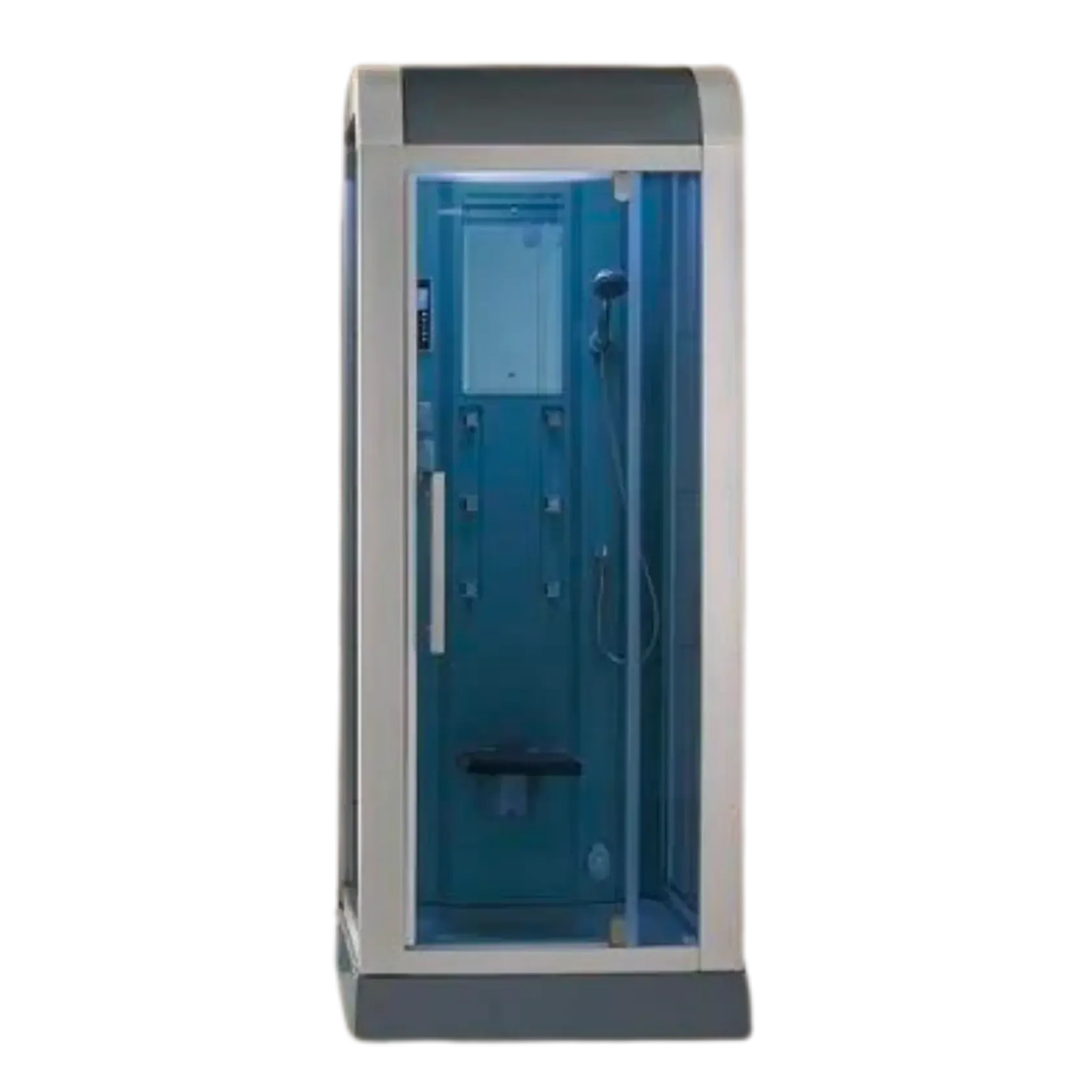

Mesa 502L Steam Shower
Key Features
- Dimensions: 36" x 36" x 89" (add 2" for ventilation exhaust pipe)
- 3KW Steam Generator
- Handheld Showerhead
- 6 Acupuncture Water Body Jets

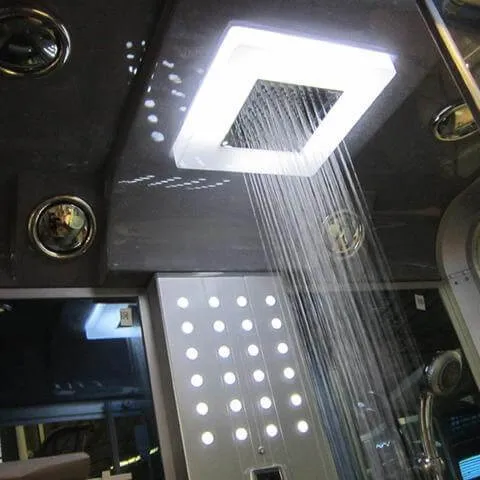

- Rainfall Ceiling Shower
- Ceiling Light
- Storage Shelves
- Ozone Sterilization System
- ETL Certified (220V)110V Optional
- FM Radio Built-In
Additional Steam Shower Features
- Blue LED Mood Lighting
- Tempered Glass
- Temperature Sensor
- Ventilation Fan
- Enclosed Top
- Fold-Up Seat
- 1 Storage Shelve
Warranty
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pans, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
FAQ
Mesa Steam Shower FAQ
Can it be used as a regular shower?
Yes, the WS-302 can be used like a standard shower. You can turn the steam on or off using the control panel.
Does the unit come in one piece or in panels?
All units come in panels. Mesa's Stand Alone Steam Showers are pre-assembled
with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
- One 30 AMP GFCI Breaker
- (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
I would like to place it on the second floor, will there be a weight problem?
The unit is about 500 lbs. water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
Water pressure & flow rates
All our steam showers are recommended to be at 2.1 GPM
How many HOT/COLD Connections are required?
Regardless of the number of shower heads, all units have one HOT/COLD connection.
Where is the HOT/COLD Connection located?
The HOT/COLD connection is typically situated behind the shower's hot and cold controls, which may vary depending on the specific model. Generally, the connection is located approximately 30" from the floor on the rear of the unit. For a more precise location, please refer to the diagrams provided on the product listing page.
To ensure effortless installation, flex hoses are included to accommodate your existing hot and cold water supply lines. Regardless of their placement, these hoses will make connecting your steam shower a breeze.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
